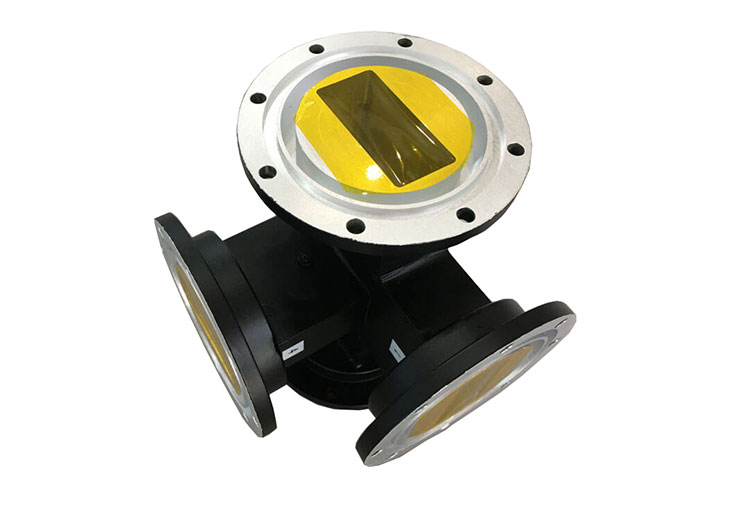

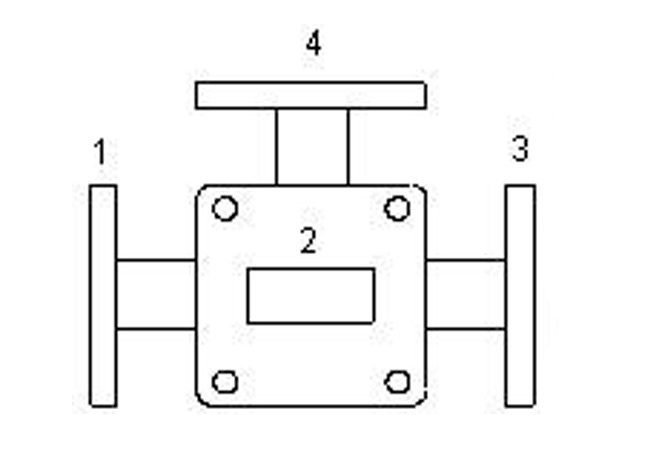

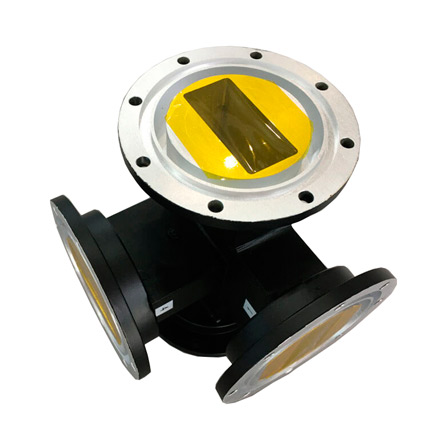

Dolph Microwave's waveguide tee in microwave is four-port coupler for matching, balance, and isolation. E-plane to H-plane Isolation is a function of the symmetry which is carefully balanced on each unit. If the E-plane port 4 or the H-plane port 2 are used as inputs the split is on the output collinear ports 1 and 3. When the input is E plane port4 the outputs are out of phase 180 deg. When the input is H plane port 2 the outputs are in phase. The in-phase and equal amplitude signals inputting into two collinear ports can result combined signals at H-plane port and canclle dsignal at E-plane port. This feature is widely used in monopulse antenna feeds structure and phasing testing setup. Taking waveguide tee in microwave as example.
Ordering Information of Waveguide Tees in Microwave
Ordering Information of E-Plane Tee
Ordering Information of H-Plane Tee

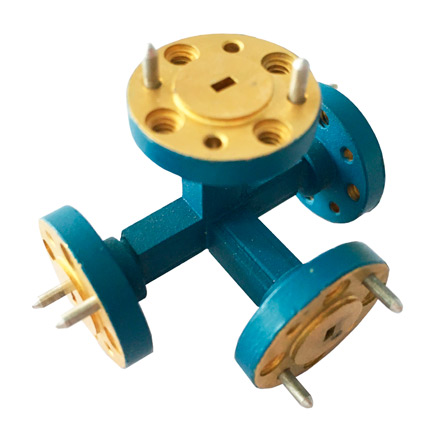

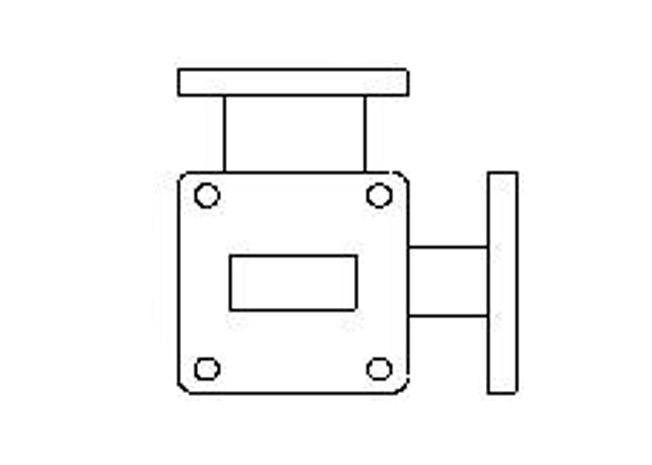

Dolph Microwave's manufactures a wide variety of H-Plane Tees. The junction of the auxiliary arm is made on the narrow wall of the main waveguide.
Flange type: Multiple types available - see Dolph Microwave Flanges page.
Finish: Corrosion protection plus black top coat.
| Model No* | Freq Range (GHz) | Operating Bandwidth (%)** | VSWR (Max) | Isolation (H&E Arms) (dB) | Unbalance (Max) (dB) | WG Type | Flange | Material | ||
| H-Arm | E-Arm | IEC | EIA | |||||||
| DH-3WMT… | 0.32-0.49 | 10-15 | 1.30 | 1.50 | 35 | ±0.25 | R3 | WR2300 | FDP/FDM | Al |
| DH-4WMT… | 0.35-0.53 | 10-15 | 1.30 | 1.50 | 35 | ±0.25 | R4 | WR2100 | FDP/FDM | Al |
| DH-5WMT… | 0.41-0.62 | 10-15 | 1.30 | 1.50 | 35 | ±0.25 | R5 | WR1800 | FDP/FDM | All |
| DH-6WMT… | 0.49-0.75 | 10-15 | 1.30 | 1.50 | 35 | ±0.25 | R6 | WR1500 | FDP/FDM | All |
| DH-8WMT… | 0.64-0.98 | 10-15 | 1.30 | 1.50 | 35 | ±0.25 | R8 | WR1150 | FDP/FDM | All |
| DH-9WMT… | 0.75-1.15 | 10-15 | 1.30 | 1.50 | 35 | ±0.25 | R9 | WR975 | FDP/FDM | All |
| DH-12WMT… | 0.96-1.46 | 10-15 | 1.20 | 1.50 | 35 | ±0.25 | R12 | WR770 | FDP/FDM | All |
| DH-14WMT… | 1.13-1.73 | 10-15 | 1.20 | 1.50 | 35 | ±0.25 | R14 | WR650 | FDP/FDM | All |
| DH-18WMT… | 1.45-2.20 | 10-15 | 1.20 | 1.50 | 35 | ±0.25 | R18 | WR510 | FDP/FDM | All |
| DH-22WMT… | 1.72-2.61 | 10-15 | 1.30 | 1.50 | 35 | ±0.4 | R22 | WR430 | FDP/FDM | Al/Cu |
| DH-26WMT… | 2.17-3.30 | 10-15 | 1.30 | 1.50 | 35 | ±0.4 | R26 | WR340 | FDP/FDM | Al/Cu |
| DH-32WMT… | 2.60-3.95 | 10-15 | 1.30 | 1.50 | 35 | ±0.4 | R32 | WR284 | FDP/FDM | Al/Cu |
| DH-40WMT… | 3.22-4.90 | 10-15 | 1.20 | 1.30 | 35 | ±0.4 | R40 | WR229 | FDP/FDM | Al/Cu |
| DH-48WMT… | 3.94-5.99 | 10-15 | 1.20 | 1.30 | 35 | ±0.4 | R48 | WR187 | FDP/FDM | Al/Cu |
| DH-58WMT… | 4.64-7.05 | 10-15 | 1.20 | 1.30 | 35 | ±0.4 | R58 | WR159 | FDP/FDM | Al/Cu |
| DH-70WMT… | 5.38-8.17 | 10-15 | 1.20 | 1.30 | 35 | ±0.4 | R70 | WR137 | FDP/FDM | Al/Cu |
| DH-84WMT… | 6.57-9.99 | 10-15 | 1.20 | 1.30 | 35 | ±0.4 | R84 | WR112 | FBP/FBM/FBE | Al/Cu |
| DH-100WMT… | 8.20-12.4 | 10-15 | 1.20 | 1.30 | 35 | ±0.4 | R100 | WR90 | FBP/FBM/FBE | Al/Cu |
| DH-120WMT… | 9.84-15.0 | 10-15 | 1.20 | 1.30 | 35 | ±0.4 | R120 | WR75 | FBP/FBM/FBE | Al/Cu |
| DH-140WMT… | 11.9-18.0 | 10-15 | 1.20 | 1.30 | 35 | ±0.4 | R140 | WR62 | FBP/FBM/FBE | Al/Cu |
| DH-180WMT… | 14.5-22.0 | 10-15 | 1.20 | 1.30 | 35 | ±0.4 | R180 | WR51 | FBP/FBM/FBE | Al/Cu |
| DH-220WMT… | 17.6-26.7 | 10-15 | 1.20 | 1.50 | 30 | ±0.4 | R220 | WR42 | FBP/FBM/FBE | Al/Cu |
| DH-260WMT… | 21.7-33.0 | 10-15 | 1.20 | 1.50 | 30 | ±0.4 | R260 | WR34 | FBP/FBM/FBE | Al/Cu |
| DH-320WMT… | 26.3-40.0 | 10-15 | 1.20 | 1.50 | 30 | ±0.4 | R320 | WR28 | FBP/FBM/FBE | Al/Cu |
| DH-400WMT… | 32.9-60.1 | 5-10 | 1.50 | 1.60 | 20 | ±0.5 | R400 | WR22 | FUGP | Cu |
| DH-500WMT… | 39.2-59.6 | 5-10 | 1.50 | 1.60 | 20 | ±0.5 | R500 | WR19 | FUGP | Cu |
| DH-620WMT… | 49.8-75.8 | 5-10 | 1.50 | 1.60 | 20 | ±0.5 | R620 | WR15 | FUGP | Cu |
| DH-740WMT… | 60.5-91.9 | 5-10 | 1.50 | 1.60 | 20 | ±0.5 | R740 | WR12 | FUGP | Cu |
| DH-900WMT… | 73.8-112 | 5-10 | 1.50 | 1.60 | 20 | ±0.5 | R900 | WR10 | FUGP | Cu |
*Indicates Model Number. See Ordering Information for complete part number.
**Typical operating bandwidth of the hybrid tee is up 20% of waveguide bandwidth. Performance degradation may occur while it covers wider waveguide bandwidth.
Waveguide Tees in Microwave is divided in H-tee and E-tee. E-tee is only like a power divider while H-tee is almost the similar function like 2-way divider from the application. Waveguide Tees in Microwave is different from neither H-tee and E-tee, which is also functional as divider but it is 4-port components.
Waveguide Tee is used to either divide or combine power in a waveguide system which is similar like a power divider. It is a 3-port components and when three waveguides tubes are connected which is like "T". So the components naming as waveguide tee.
