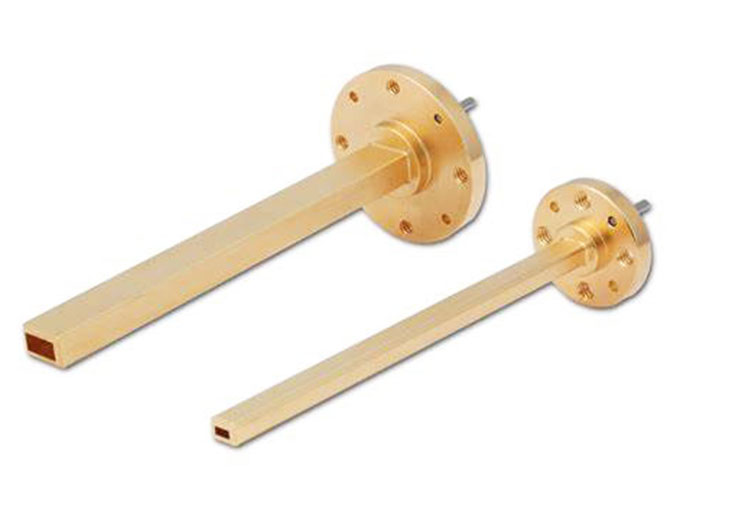

Dolph Microwave can design the best Waveguide Probe according to customer needs, which can be used in a variety of magnetic field testing tasks, and can also be the core component of a near-field scanning system. Please call us with your specification and discuss your needs with one of our sales engineers.
Model No | Freq Range (GHz) | Gain (dB) | VSWR | SizeφD*H(mm) | Connector |
DH-OW1500-N | 0.49-0.75GHz waveguide probe | 7 | ≤2.2 | φ530*700 | N-50K |
DH-OW1150-N | 0.64-0.98GHz waveguide probe | 7 | ≤2.2 | φ530*650 | N-50K |
DH-OW975-N | 0.76-1.15GHz waveguide probe | 7 | ≤2.2 | φ530*600 | N-50K |
DH-OW770-N | 0.96-1.46GHz waveguide probe | 7 | ≤2.2 | φ530*550 | N-50K |
DH-OW550-N | 1.13-1.73GHz waveguide probe | 7 | ≤2.2 | φ530*460 | N-50K |
DH-OW510-N | 1.45-2.20GHz waveguide probe | 7 | ≤2.2 | φ530*400 | N-50K |
DH-OW430-N | 1.72-2.61GHz waveguide probe | 7 | ≤2.2 | φ530*330 | N-50K |
DH-OW340-N | 2.17-3.30GHz waveguide probe | 7 | ≤2.2 | φ530*280 | N-50K |
DH-OW284-N | 2.60-3.95GHz waveguide probe | 7 | ≤2.2 | φ140*240 | N-50K |
DH-OW229-N | 3.22-4.90GHz waveguide probe | 7 | ≤2.2 | φ140*210 | N-50K |
DH-OW187-N | 3.94-4.99GHz waveguide probe | 7 | ≤2.2 | φ140*180 | N-50K |
DH-OW159-N | 4.64-7.05GHz waveguide probe | 7 | ≤2.2 | φ140*150 | N-50K |
DH-OW137-N | 5.38-8.17GHz waveguide probe | 7 | ≤2.2 | φ140*130 | N-50K |
DH-OW112-S | 6.57-9.99GHz waveguide probe | 7 | ≤2.2 | φ140*110 | SMA-50K |
DH-OW90-S | 8.2-12.5GHz waveguide probe | 7 | ≤2.2 | φ140*100 | SMA-50K |
DH-OW75-S | 9.84-15.0GHz waveguide probe | 7 | ≤2.2 | φ140*90 | SMA-50K |
DH-OW62-S | 11.9-18.0GHz waveguide probe | 7 | ≤2.2 | φ80*80 | SMA-50K |
DH-OW51-S | 14.5-22.0GHz waveguide probe | 7 | ≤2.2 | φ80*80 | SMA-50K |
DH-OW42-K | 18.0-26.5GHz waveguide probe | 7 | ≤2.2 | φ80*70 | K-50K |
DH-OW34-K | 21.7-33.0GHz waveguide probe | 7 | ≤2.2 | φ80*70 | K-50K |
DH-OW28-K | 26.5-40.0GHz waveguide probe | 7 | ≤2.2 | φ80*60 | K-50K |
DH-OW22-OS | 33.0-50.0GHz waveguide probe | 7 | ≤2.2 | φ80*60 | OS2.4-50K |
DH-OW19-V | 39.2-59.6GHz waveguide probe | 7 | ≤2.2 | φ80*50 | V-50K |
Waveguide Probes are ideally suited for near-field measurements. These probes are used to sample the radiated electromagnetic field of an antenna under test while minimally perturbing the incident field. They are designed for minimum VSWR, long-term stability and excellent repeatability.
Electric fields originate primarily from cables and wires that are not terminated with a load, and from printed circuit board wires leading to high impedance logic circuits. The simplest electric field probe is essentially a small antenna. Electric field probes can easily detect over-the-air signals, such as cellular downlink signals. These high-power airborne signals may require increased attenuation to prevent overloading the spectrum analyzer.
