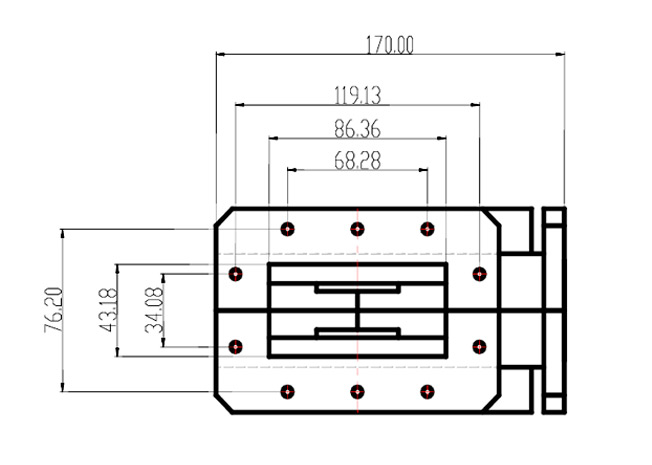

Dolph Microwave offers a standard product line of Industrial Microwave Circulator for 915 and 2450MHz. Using standard waveguide flange, the product covers a wide frequency band and complete categories. Taking the WR340(2450MHz) for example.
WR340 Waveguide Circulator | |
Electrical Specifications | |
Model | DH-26WCIC(WR340) |
Frequency Range | 2.2-2.4GHz |
VSWR | 1.2:1 Max. |
Insertion loss | 0.3 dB Max. |
Isolation | 20 dB |
Average Power | Up to 15 KW |
Peak Power | 150 KW |
Flange | FDP26 |
Material | Al |
Net Weight | 3.3 Kg Around |
Industrial Microwave Circulator is a device with three ports. Its characteristic is that it can realize one-way transmission of high-frequency signal energy. It can control the transmission of electromagnetic waves along a certain circumferential direction. This characteristic of one-way transmission of high-frequency signal energy is mostly used between the high-frequency power amplifier output and the load, which plays a role of mutual independence and "isolation".
The unidirectional transmission principle of the Industrial Microwave Circulator is due to the use of ferrite gyromagnetic material. This material produces gyromagnetic properties (also known as tensor permeability properties) under the combined action of an external high-frequency wave field and a constant DC magnetic field. It is this gyromagnetic property that causes electromagnetic waves propagating in ferrite to be rotationally polarized (Faraday effect), and the energy of electromagnetic waves is strongly absorbed (ferromagnetic resonance).
