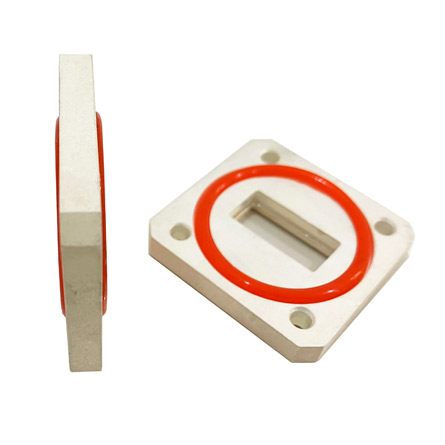

Dolph Microwave offers a standard product line of Waveguide Pressure Window, covering frequency from 0.3 to 110 GHz, the standard rectangular waveguide range from BJ3 to BJ900, the typical VSWR is 1.25 over the full waveguide bandwidth, and typical insertion loss is 0.2 dB. For more information please contact us and discuss your needs with our sales engineer.
Flange type: Multiple types available – see Dolph Microwave Flanges page.
Finish: Corrosion protection plus black/grey top coat.
Model No* | Freq Range (GHz) | VSWR (Max) | WG Type | Flange | Material | |
IEC | EIA | |||||
DH-14WPW... | 1.13-1.73 | 1.25 | BJ14 | WR650 | FDP/FDM | Al |
DH-18WPW... | 1.45-2.20 | 1.25 | BJ18 | WR510 | FDP/FDM | Al |
DH-22WPW... | 1.72-2.61 | 1.25 | BJ22 | WR430 | FDP/FDM | Al/Cu |
DH-26WPW... | 2.17-3.30 | 1.25 | BJ26 | WR340 | FDP/FDM | Al/Cu |
DH-32WPW... | 2.60-3.95 | 1.25 | BJ32 | WR284 | FDP/FDM | Al/Cu |
DH-40WPW... | 3.22-4.90 | 1.25 | BJ40 | WR229 | FDP/FDM | Al/Cu |
DH-48WPW... | 3.94-5.99 | 1.25 | BJ48 | WR187 | FDP/FDM | Al/Cu |
DH-58WPW... | 4.64-7.05 | 1.25 | BJ58 | WR159 | FDP/FDM | Al/Cu |
DH-70WPW... | 5.38-8.17 | 1.25 | BJ70 | WR137 | FDP/FDM | Al/Cu |
DH-84WPW... | 6.57-9.99 | 1.25 | BJ84 | WR112 | FBP/FBM/FBE | Al/Cu |
DH-100WPW... | 8.20-12.40 | 1.25 | BJ100 | WR90 | FBP/FBM/FBE | Al/Cu |
DH-120WPW... | 9.84-15.0 | 1.25 | BJ120 | WR75 | FBP/FBM/FBE | Al/Cu |
DH-140WPW... | 11.9-18.0 | 1.25 | BJ140 | WR62 | FBP/FBM/FBE | Al/Cu |
DH-180WPW... | 14.5-22.0 | 1.25 | BJ180 | WR51 | FBP/FBM/FBE | Al/Cu |
DH-220WPW... | 17.6-26.7 | 1.25 | BJ220 | WR42 | FBP/FBM/FBE | Al/Cu |
DH-260WPW... | 21.7-33.0 | 1.25 | BJ260 | WR34 | FBP/FBM/FBE | Al/Cu |
DH-320WPW... | 26.5-40.0 | 1.25 | BJ320 | WR28 | FBP/FBM/FBE | Al/Cu |
DH-400WPW... | 32.9-50.1 | 1.3 | BJ400 | WR22 | FUGP | Cu |
DH-500WPW... | 39.2-59.6 | 1.3 | BJ500 | WR19 | FUGP | Cu |
DH-620WPW... | 49.8-75.8 | 1.3 | BJ620 | WR15 | FUGP | Cu |
DH-740WPW... | 60.5-91.9 | 1.3 | BJ740 | WR12 | FUGP | Cu |
DH-900WPW... | 73.8-112 | 1.3 | BJ900 | WR10 | FUGP | Cu |
*Indicates Model Number. See Ordering Information for complete part number.
Waveguide size: WR2300 to WR10
Operational frequency range
Power hanlding: average power/ CW power
Pressure rate: bar/psi
Thickness in mm
Flange: flat or groove
Window material
Waveguide Pressure Windows is used to prevent waveguide system from moisture, dirt and dust or to isolate waveguide pressure from non-pressurized required system, which belongs to a kind of seal components. It can pass signal but isolate others useless sections. The power-handling capacity of a waveguide based system can be increased with this components.
