Dolph Microwave
Waveguide Assemblies

Dolph Microwave supplies quality waveguide assemblies, like waveguide clamps ranging from WR28 to WR187. These durable, light-weight clamps allow for the easy mounting of waveguide to most any assembly, with the use of minimal hardware. Please call us with your specification and discuss your needs for custom waveguide assemblies with one of our sales engineers. Following is the shims as example.

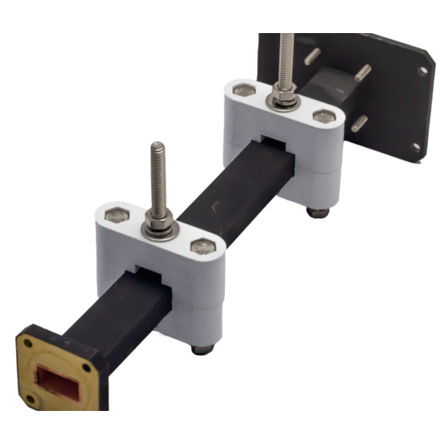

waveguide clamp
waveguide hangers

Ordering Guide of Waveguide Assemblies

Ordering Guide of Waveguide Assemblies


  • Flange type: Multiple types available – see Dolph Microwave Flanges page.

  • Finish: Corrosion protection plus black/grey top coat.

Datasheet of Waveguide Assemblies


Model No*


Freq Range

(GHz)


VSWR** (Max)

WG Type


Flange


Material

IEC

EIA

DH-14WG...

1.13-1.73

1.05

BJ14

WR650

FDP/FDM

Al

DH-18WG...

1.45-2.20

1.05

BJ18

WR510

FDP/FDM

Al

DH-22WG...

1.72-2.61

1.05

BJ22

WR430

FDP/FDM

Al/Cu

DH-26WG...

2.17-3.30

1.05

BJ26

WR340

FDP/FDM

Al/Cu

DH-32WG...

2.60-3.95

1.05

BJ32

WR284

FDP/FDM

Al/Cu

DH-40WG...

3.22-4.90

1.05

BJ40

WR229

FDP/FDM

Al/Cu

DH-48WG...

3.94-5.99

1.05

BJ48

WR187

FDP/FDM

Al/Cu

DH-58WG...

4.64-7.05

1.05

BJ58

WR159

FDP/FDM

Al/Cu

DH-70WG...

5.38-8.17

1.05

BJ70

WR137

FDP/FDM

Al/Cu

DH-84WG...

6.57-9.99

1.05

BJ84

WR112

FBP/FBM/FBE

Al/Cu

DH-100WG...

8.20-12.40

1.05

BJ100

WR90

FBP/FBM/FBE

Al/Cu

DH-120WG...

9.84-15.0

1.05

BJ120

WR75

FBP/FBM/FBE

Al/Cu

DH-140WG...

11.9-18.0

1.05

BJ140

WR62

FBP/FBM/FBE

Al/Cu

DH-180WG...

14.5-22.0

1.05

BJ180

WR51

FBP/FBM/FBE

Al/Cu

DH-220WG...

17.6-26.7

1.05

BJ220

WR42

FBP/FBM/FBE

Al/Cu

DH-260WG...

21.7-33.0

1.05

BJ260

WR34

FBP/FBM/FBE

Al/Cu

DH-320WG...

26.5-40.0

1.05

BJ320

WR28

FBP/FBM/FBE

Al/Cu

DH-400WG...

32.9-50.1

1.10

BJ400

WR22

FUGP

Cu

DH-500WG...

39.2-59.6

1.10

BJ500

WR19

FUGP

Cu

DH-620WG...

49.8-75.8

1.10

BJ620

WR15

FUGP

Cu

DH-740WG...

60.5-91.9

1.10

BJ740

WR12

FUGP

Cu


Diagram of Waveguide Assemblies

diagram of waveguide assemblies 1
diagram of waveguide assemblies 2
diagram of waveguide assemblies 3

Composition of Waveguide Assemblies

  • Waveguide Standoff/Hangers: The Standoffs are made of durable plastic and come complete with hardware kits so that they are ready for installation.

  • Clamp/Hangers: Hanging clips suspend the conductor bar from a flange or web support and allow the conductor bar to slide back and forth to accommodate thermal expansion.

  • Flange Gasket & Hardware Kits: Flange gaskets are used to create a static seal between two flange faces under different operating conditions and at different pressure and temperature ratings.

  • Waveguide Shims and Spacers: Placed between the flanges to reduce gas leakage that affects the air pressure inside the waveguide.

Composition of Waveguide Assemblies

Role of Waveguide Assemblies

Role of Waveguide Assemblies
  • Quality waveguide assemblies can reduce gas leakage that affects the air pressure in the waveguide.

  • The above microwave waveguide components can effectively prevent foreign matter from invading into the waveguide.

  • Waveguide assemblies can reduce power leakage and arcing.
