The rotating joint is mainly used for the connection of fixed part and rotating part in the radar feeder system. The product frequency range covers 2.6-40GHz.According to the structure, it can be divided into type I, L and U, etc. According to the component channel, it can be divided into single-way, double-way and multi-way rotating joint.
Flange type: Multiple types available - see Dolph Microwave Flanges page.
Finish: Corrosion protection plus black top coat.
For custom ridged waveguide with high quality and wide application, contact Dolph Microwave.
Product model | Frequency (GHz) | VSWR | IL(dB) | Average Power | Flange | Material | Coating |
DH-84DRWRJI | 0.84-2 | ≤1.5 | ≤0.5 | 200W | FP | CO | Silver |
DH-150DRWRJI | 1.5-3.6 | ≤1.5 | ≤0.5 | 200W | FP | CO | Silver |
DH-200DRWRJI | 2-4.8 | ≤1.5 | ≤0.5 | 200W | FP | CO | Silver |
DH-250DRWRJI | 2.6-7.8 | ≤1.5 | ≤0.5 | 200W | FP | CO | Silver |
DH-350DRWRJI | 3.5-8.2 | ≤1.5 | ≤0.5 | 200W | FP | CO | Silver |
DH-475DRWRJI | 4.75-11 | ≤1.5 | ≤0.5 | 100W | FP | CO | Silver |
DH-500DRWRJI | 5-18 | ≤1.5 | ≤0.5 | 100W | FP | CO | Silver |
DH-580DRWRJI | 5.8-16 | ≤1.5 | ≤0.5 | 100W | FP | CO | Silver |
DH-650DRWRJI | 6.5-18 | ≤1.5 | ≤0.5 | 100W | FP | CO | Silver |
DH-700DRWRJI | 7-18.5 | ≤1.5 | ≤0.5 | 100W | FP | CO | Silver |
DH-750DRWRJI | 7.5-18 | ≤1.5 | ≤0.5 | 100W | FP | CO | Silver |
DH-1100DRWRJI | 11-26.5 | ≤1.8 | ≤0.8 | 50W | FP | CO | Silver |
DH-1800DRWRJI | 18-40 | ≤2.0 | ≤0.8 | 30W | FP | CO | Silver |

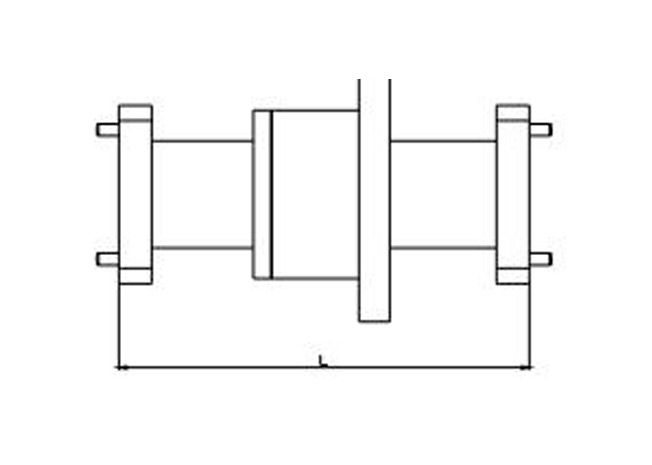

Double-ridged rotary joints are available for all frequency bands. It has ports in U-style, L-style, or both the ports in I-style.
They are used for the rotary transmission of power and signal between the stationary and rotating parts of a radar or satcom system. Moreover, the double ridge waveguide rotating joints can transmit microwave energy from fixed lines to the rotating ones without degradation in their performance.
